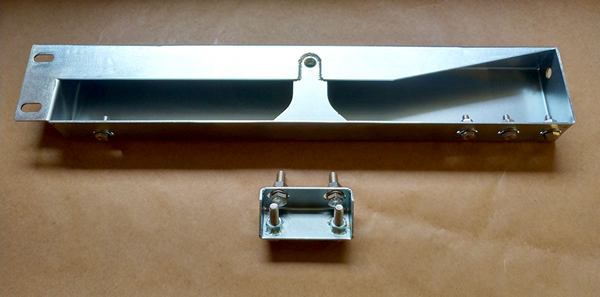

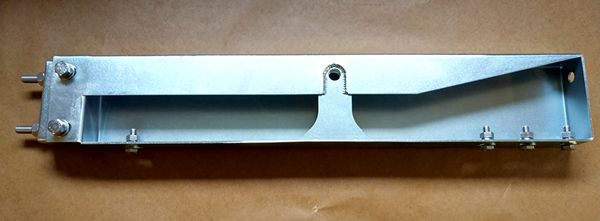

HNJ395240 - Land Rover Series Truck Cab Seat Belt Bracket - RH - KIT
HNJ Engineering brings you a remanufactured version of Land Rover part number: 395240 - Truck Cab Seat Belt Bracket - RH.
Manufactured as a laser cut, welded assembly from 2mm thick mild steel with a zinc plated finish.

Applicable models: Land Rover Series 2, 2A and 3.

This bracket is designed to be used in conjunction with HNJ395246 - Land Rover Series Truck Cab - Upper Bracket, which is included as part of this kit.

This kit includes the following:

1 xHNJ395240 - Land Rover Series Truck Cab Seat Belt Bracket - RH

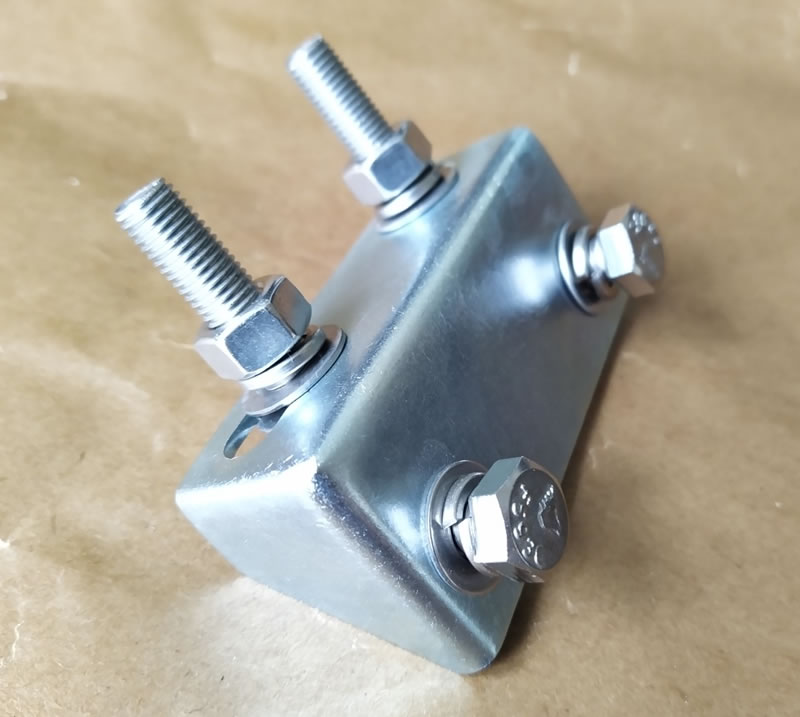

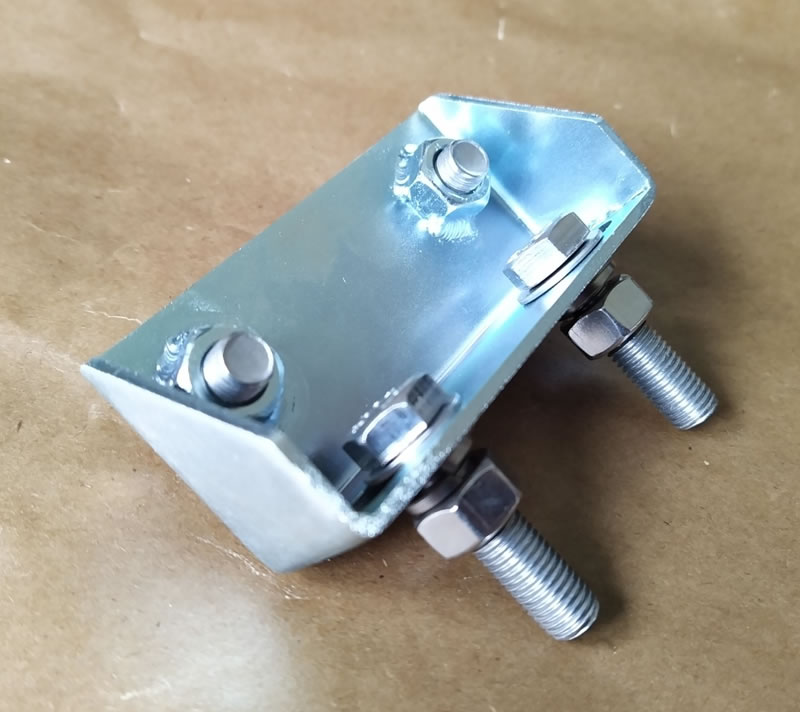

1x HNJ395246 - Land Rover Series Truck Cab - Upper Bracket

Upper Bracket Fixings are included as below:
2x 5/16 UNF x 3/4" LG Stainless Steel Setscrews, 2x 5/16 Stainless Washers & 2x 5/16 Stainless Spring Washers.
2x 5/16 UNF x 1, 1/4" LG Stainless Steel Setscrews, 4x 5/16 Stainless Washers & 2x 5/16 Stainless Spring Washers & 2x 5/16 UNF Stainless Full Nuts.

Vertical Fixings to replace the 4 removed rivets are included as below:
4x 1/4" UNF x 3/4" LG Stainless Steel Setscrews, 8x 1/4" Stainless Washers & 4x 1/4" Stainless Spring Washers & 4x 1/4" UNF Stainless Full Nuts.

Notes:
In order to fit these brackets 4 rivets will need to be removed from the truck cab to allow you secure the bracket with the included fasteners.

Seatbelt shoulder mount nut thread is 7/16 UNF.

Although every effort has been made to ensure the holes in the brackets align with the rivet holes on your truck cab, some drilling maybe required on assembly due the variance of rivet positions on Land Rover Truck Cabs.

The Land Rover Series Truck Cab Seat Belt Bracket - RH retails at:

£69.95 each + postage to UK Mainland customers.

International postage isn't a problem; please contact us for a quotation.

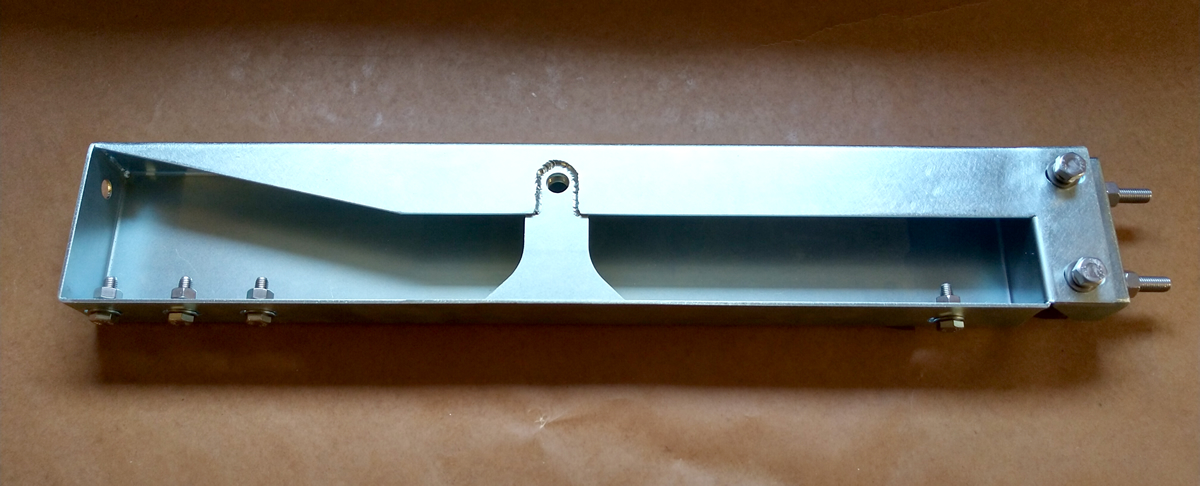

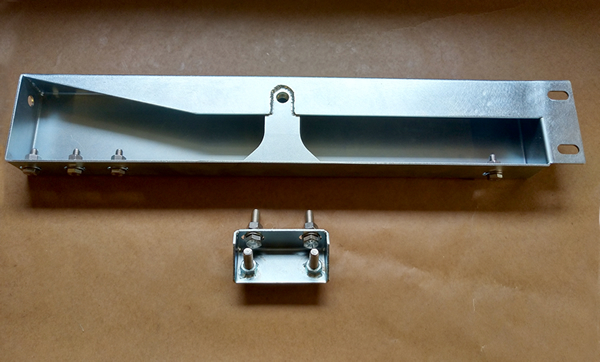

HNJ395241 - Land Rover Series Truck Cab Seat Belt Bracket - LH - KIT
HNJ Engineering brings you a remanufactured version of Land Rover part number: 395241 - Truck Cab Seat Belt Bracket LH.
Manufactured as a laser cut, welded assembly from 2mm thick mild steel with a zinc plated finish.

Applicable models: Land Rover Series 2, 2A and 3.

This bracket is designed to be used in conjunction with HNJ395246 - Land Rover Series Truck Cab - Upper Bracket, which is included as part of this kit.

This kit includes the following:

1 xHNJ395241 - Land Rover Series Truck Cab Seat Belt Bracket - LH
1x HNJ395246 - Land Rover Series Truck Cab - Upper Bracket

Upper Bracket Fixings are included as below:
2x 5/16 UNF x 3/4" LG Stainless Steel Setscrews, 2x 5/16 Stainless Washers & 2x 5/16 Stainless Spring Washers.
2x 5/16 UNF x 1, 1/4" LG Stainless Steel Setscrews, 4x 5/16 Stainless Washers & 2x 5/16 Stainless Spring Washers & 2x 5/16 UNF Stainless Full Nuts.

Vertical Fixings to replace the 4 removed rivets are included as below:
4x 1/4" UNF x 3/4" LG Stainless Steel Setscrews, 8x 1/4" Stainless Washers & 4x 1/4" Stainless Spring Washers & 4x 1/4" UNF Stainless Full Nuts.


Notes:
In order to fit these brackets 4 rivets will need to be removed from the truck cab to allow you secure the bracket with the included fasteners.

Seatbelt shoulder mount nut thread is 7/16 UNF.

Although every effort has been made to ensure the holes in the brackets align with the rivet holes on your truck cab, some drilling maybe required on assembly due the variance of rivet positions on Land Rover Truck Cabs.

The Land Rover Series Truck Cab Seat Belt Bracket - LH retails at:

£69.95 each + postage to UK Mainland customers.

International postage isn't a problem; please contact us for a quotation.
