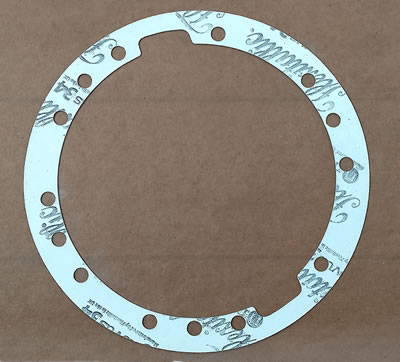

HNJ7316 - Land Rover Series - Rover Axle Differential Gasket
HNJ Engineering brings you a remanufactured equivalent of HNJ7316 Land Rover Series Rover Axle Differential Gasket
Manufactured in the UK from Flexitallic NOVUS 34.
Novus 34 is a superior performance universal compressed sheet material based on a blend of aramid/ inorganic fibres and
special additives, with high quality nitrile rubber binder system.
The Land Rover Series - Rover Axle Differential Gasket HNJ7316 retails at: |
||||
£6.95
ea
ex VAT |
||||
IN STOCK |
Service
Novus 34, a superior performance material with excellent mechanical properties, it is suitable for many applications including oils,
solvents, high pressure steam and gases including oxygen.
Approvals / Compliance
WRAS Potable Water: Registration No.
1406501
BAM (Oxygen service) up to 90 o
C and 160 bar
Complies with BS Specification 7531 Grade X
TA-LUFT (in accordance with VDI Guideline
2440)
GL Approval cert 37702 – 12HH
Typical Physical Properties
Thickness 1.5mm
Density 1.75g/cc
Tensile Strength ASTM F152 9-11MPa
Compression ASTM F36 9%
Recovery ASTM F36 55% min
Residual Stress BS 7531 (300C) 26MPa
DIN 52913 32MPa
Gas Leakage BS 7531 <1.0cc/min
ASTM Oil 1 Thickness increase 1.0%
IRM 903 Oil Thickness increase 2.5%
ASTM Fuel B Thickness increase 3.0%
