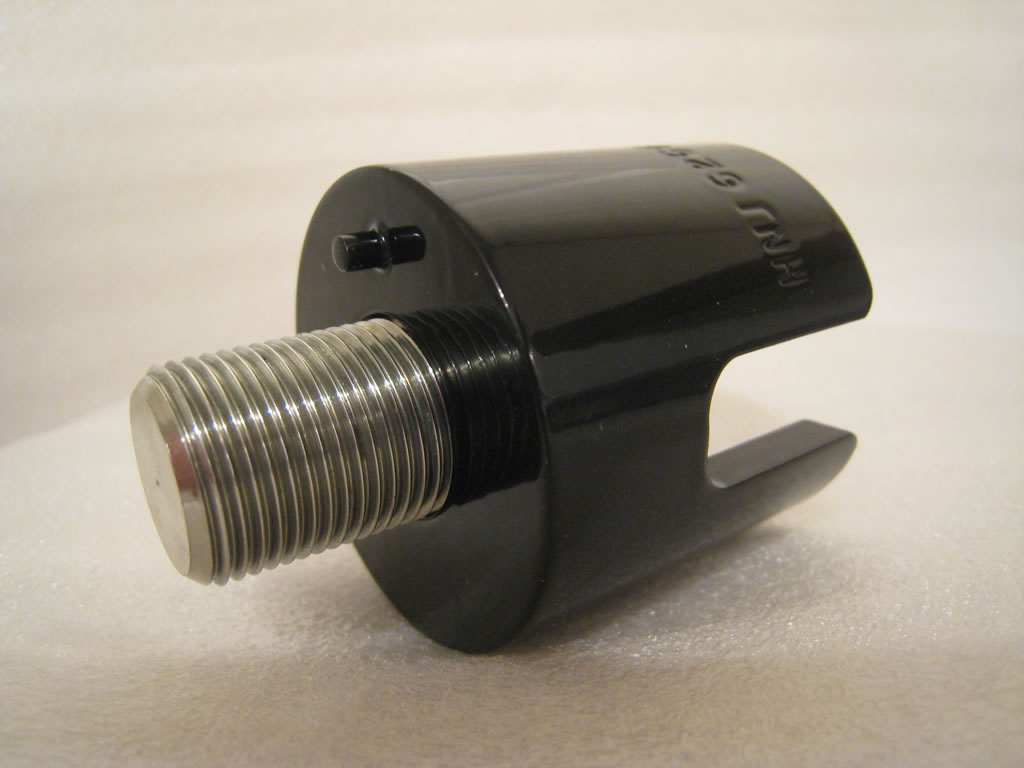

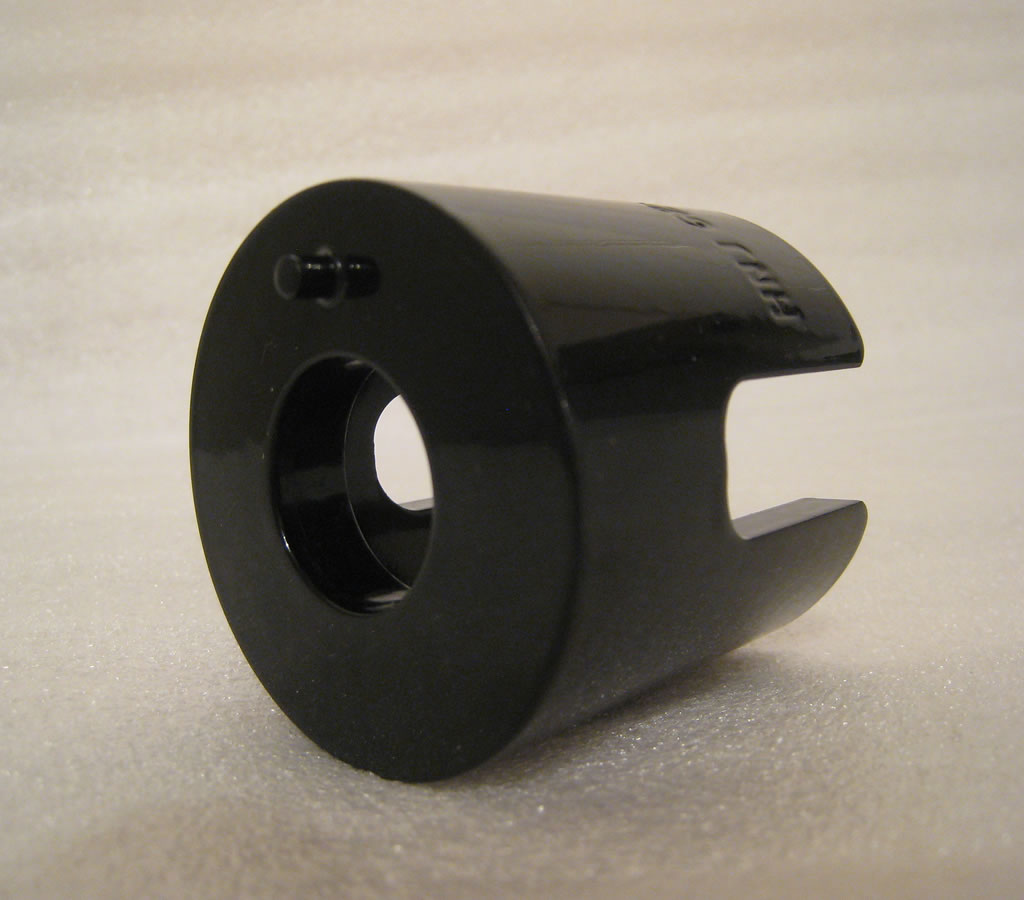

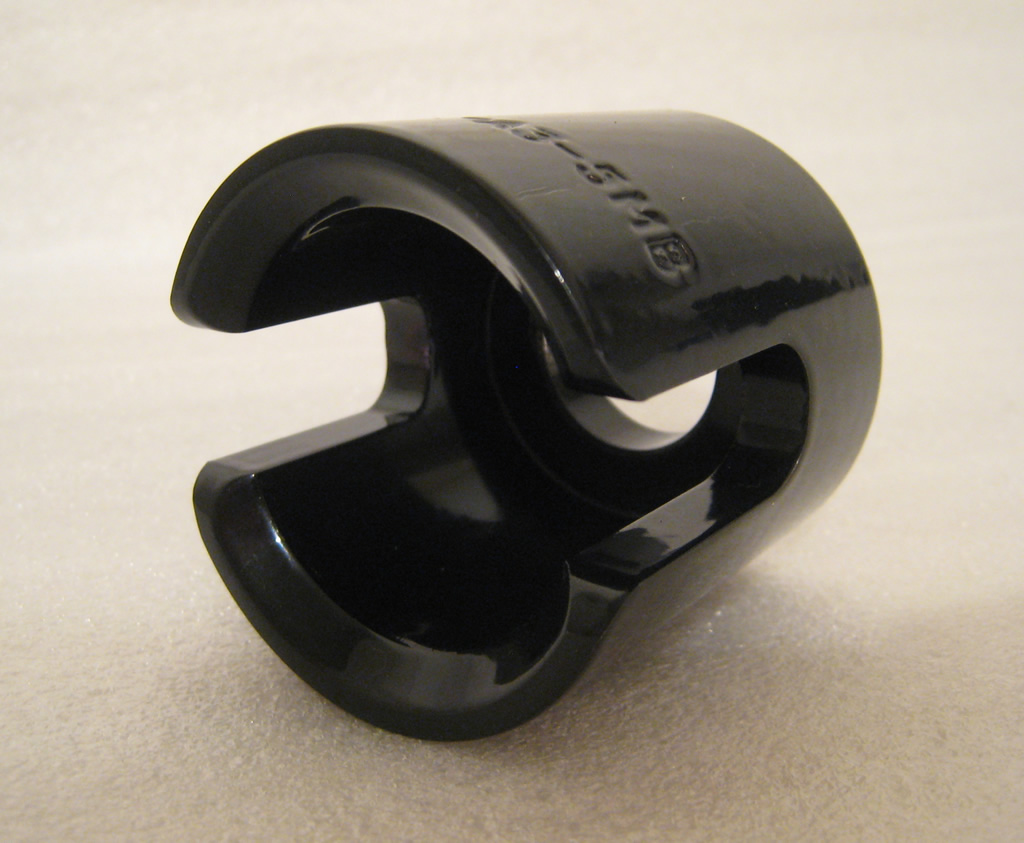

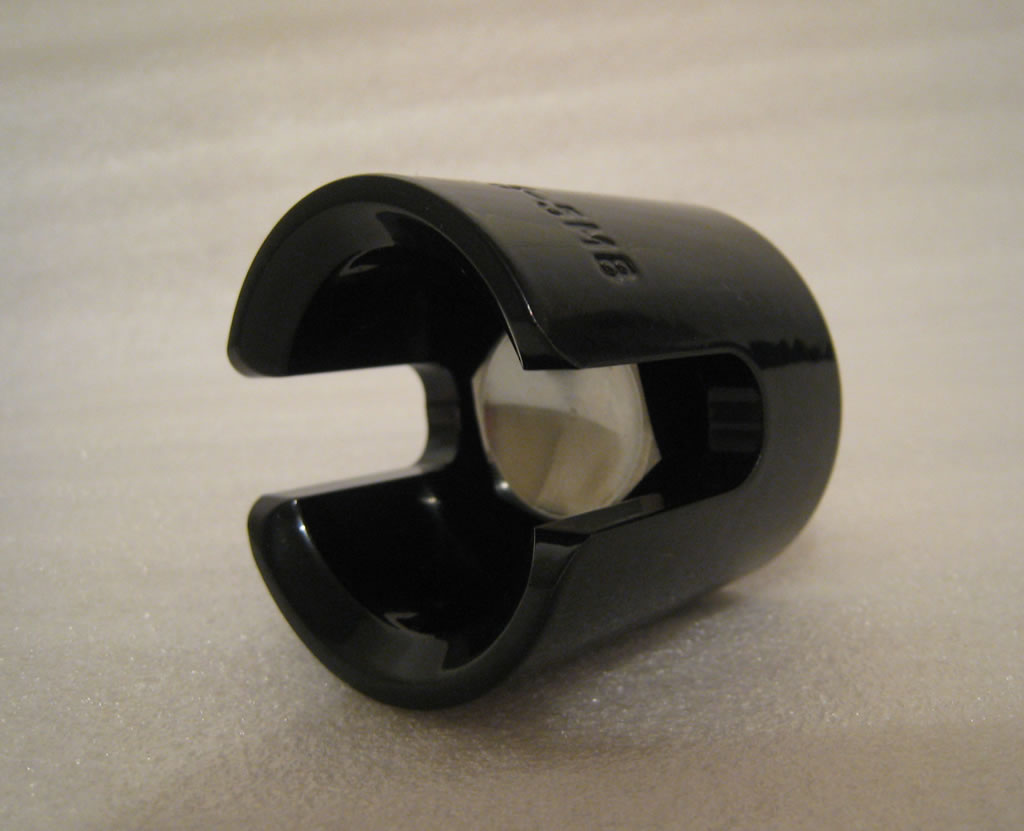

Fairey Winches Capstan Drive Dog – Imperial Engine - 3 Bearing Crank
Re-manufactured equivalent of Fairey part number: 136-A3
3/4" clearance hole through centre of part.
Manufactured from EN24T Steel
Black powder coated
Spigot on rear face is present to allow location into the fan pulley keyway.

Price: £44.50 + postage to UK Mainland.

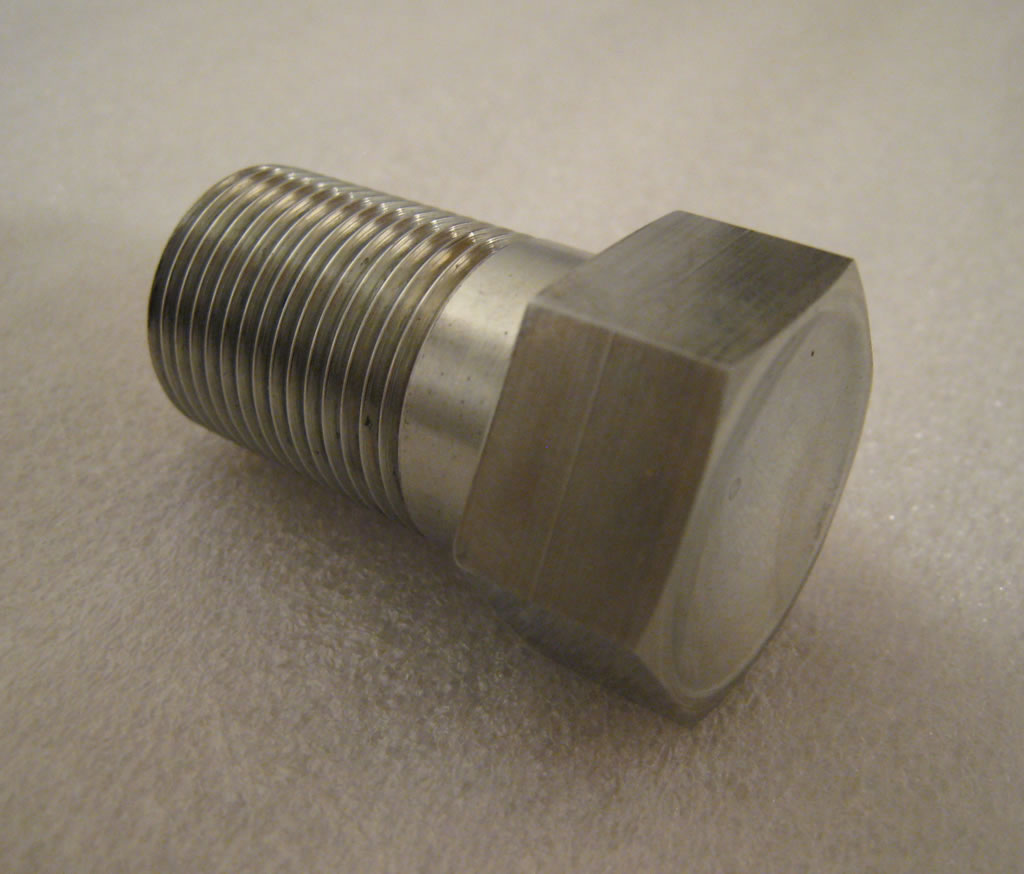

Fairey Winches Crankshaft Set Screw – Imperial Engine - 3 Bearing Crank
Re-manufactured equivalent of Fairey part number: 134-A4
Dome machined into head to allow correct driveshaft engagement.
Imperial 3/4" 16TPI thead.
Manufactured from EN24T Steel
Clear Zinc Passivated

Note: This bolt is tightened up to a torque of 200lbf.ft. (Torque figure courtesy of the Fairey Winches Kit No 5300).

Price: £17.80 + postage to UK Mainland

Fairey Winches Capstan Drive Dog – Metric Engine - 5 Bearing Crank
Re-manufactured equivalent of Fairey part number: 6266-A3
M20 clearance hole through centre of part.
Manufactured from EN24T Steel
Black powder coated
Spigot on rear face is present to allow location into the fan pulley keyway.

This item is compatible with the following Land Rover engines:
- 2.25 Land Rover Series Petrol & Diesel (Metric Crank)
- 2.5 Land Rover Petrol & Diesel

Price: £44.50 + postage to UK Mainland.

Fairey Winches Crankshaft Set Screw – Metric Engine 5 Bearing Crank
Re-manufactured equivalent of Fairey part number: 6267-A4
Dome machined into head to allow correct driveshaft engagement.
Metric M20 x 1.5 thread.
Manufactured from EN24T Steel
Clear Zinc Passivated

This item is compatible with the following Land Rover engines:
- 2.25 Land Rover Series Petrol & Diesel (Metric Crank)
- 2.5 Land Rover Petrol & Diesel

Note: This bolt is tightened up to a torque of 200lbf.ft. (Torque figure courtesy of the Fairey Winches Kit No 5300)
This setscrew and metric Capstan Drive Dog are compatiable with the Land Rover 2.5 Petrol Engine .

Price: £17.80 + postage to UK Mainland

Fairey Winches Crankshaft Set Screw – Metric Engine - Land Rover 200 TDI
Re-manufactured longer equivalent of Fairey part number: 6267-A4 for use with the Land Rover 200 TDI engine
Dome machined into head to allow correct driveshaft engagement.
Metric M20 x 1.5 thread.
Manufactured from EN24T Steel
Clear Zinc Passivated

This item is compatible with the following Land Rover engines:
Land Rover 200 TDI

Note: This bolt is tightened up to a torque of 251lbf.ft. (Torque figure courtesy of the Haynes Manual)

Price: £23.95 + postage to UK Mainland
